Decorators / Basecoaters

The following systems are available for decorators and basecoaters:

SYS-CD1: Rutherford (Sequa) Decorator / Basecoater Control System
SYS-DC2: Alcoa (Ragsdale) Decorator / Basecoater Control System


SYS-CD1: Rutherford (Sequa) Decorator/Basecoater Control System
click to enlarge
  • Complete control for all machine functions including: main drive, damaged can blow-off, print carriage trip, varnish unit trip, bad can pin chain blow-off, QC pin chain blow-off, can gate, all alarm monitoring, line control interface, etc.
  • Based on HSM-CD7 technology.
  • Reduces scrap by reducing the number of cans blown-off for each miss-load, typically by 50% or more.
  • Increases quality by eliminating silver cans, partially printed cans, and partially varnished cans down the line. Eliminates inside litho (printed mandrel) problems as well.
  • Provides Q.C. Select-A-Can blow-off feature for print quality verification of each blanket at full production speeds.
  • Supplied with Variable Frequency Drive for main drive.

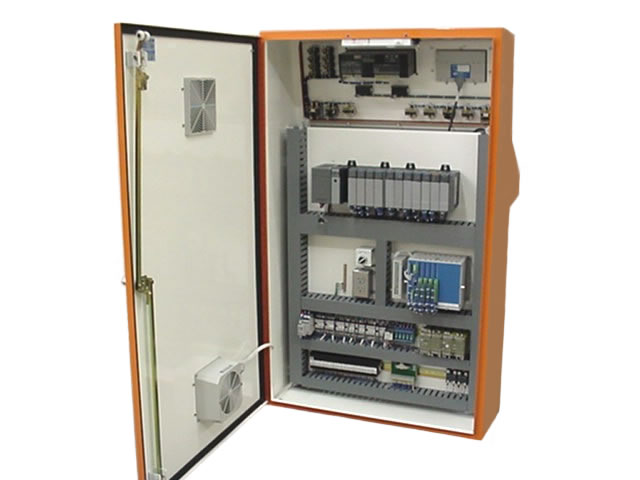

  • Supplied with 72" x 72" x 18" NEMA 12 Power cabinet with separate Operator's/Logic Console.
  • 2-Line x 20 Character Alphanumeric status/alarm display supplied standard upgradeable to a Touch-Screen panel.
  • Operates at speeds up to 2,400 Cans per minute.
  • Can be used on all Rutherford Basecoaters (both carriage trip models and two coater roll models) as well as all Decorator models.

click to enlarge

click to enlarge

contact us for more information

SYS-DC2: Alcoa (Ragsdale) Decorator/Basecoater Control System
click to enlarge
  • Complete control for all machine functions including: main drive, odd/even (interposer) or A/B/C (rotary) trip cams, single (bad can) pin chain blow-off, QC pin chain blow-off, can gate, all alarm monitoring, line control interface, etc.
  • Based on HSM-DC8 technology.
  • Reduces scrap by reducing the number of good cans blown-off for each miss-load to zero.
  • Increases quality by eliminating silver cans down the line. Eliminates inside litho (printed mandrel) problems as well.
  • Provides Q.C. Select-A-Can blow-off feature for print quality verification of each blanket at full production speeds.
  • Supplied with pneumatic ductor control technology used in HSL-DUCTOR package.
  • Supplied with Variable Frequency Drive (VFD) for main drive.
  • Optional Motorized Inker Drive control (one VFD per inker drive) and motorized varnish control (VFD).
  • Supplied with 108" x 72" x 18" NEMA 12 Power cabinet with separate Operator's/Logic Console.
  • 2-Line x 20 Character Alphanumeric status/alarm display supplied standard upgradeable to a Touch-Screen panel.
  • Operates at speeds in excess of 2,400 Cans per minute.
  • Can be used on all Alcoa (Ragsdale) Basecoaters as well as all Decorator models (both 24 spindle and 36 spindle machines).

click to enlarge

click to enlarge

click to enlarge
contact us for more information
