Bodymakers (Wall-Ironers)

The following packages are available for bodymakers:

SYS-WI1: Standun Bodymaker Control System
SYS-WI2: Ragsdale (APM) Bodymaker Control System


SYS-WI1: Standun Bodymaker Control System

  • Complete control for all machine functions including: main drive, clutch solenoids, air strip solenoids, cupfeed solenoid, rotary trip solenoid, short can detection, die sensor fail detection, all alarm monitoring, line control interface, etc.
  • Based on HSM-WI7 technology.
  • Reduces Tooling damage by accurately detecting short can/tear-offs and immediately de-activating the clutch and cupfeed to prevent feeding additional cups.
  • Provides repeatable air strip control to prevent air stripping and blow-out problems.
  • Accurately controls clutch with brake wear compensation algorithm to stop press at BDC regardless of brake response.
  • Supplied with Variable Frequency Drive for main drive.

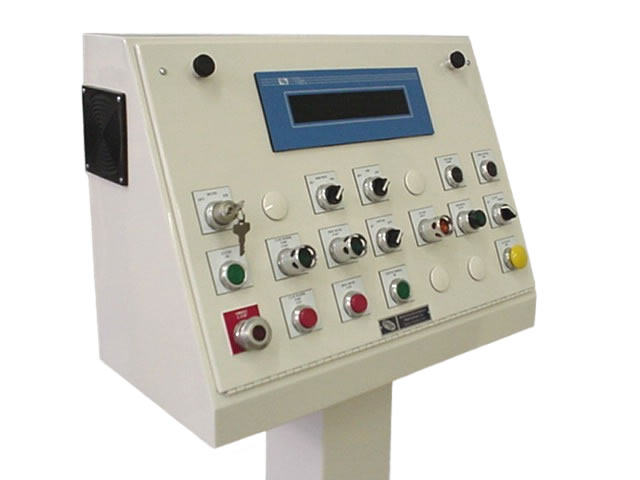

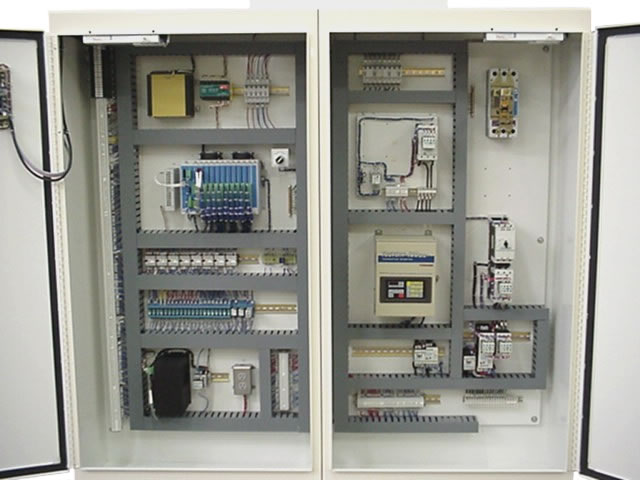

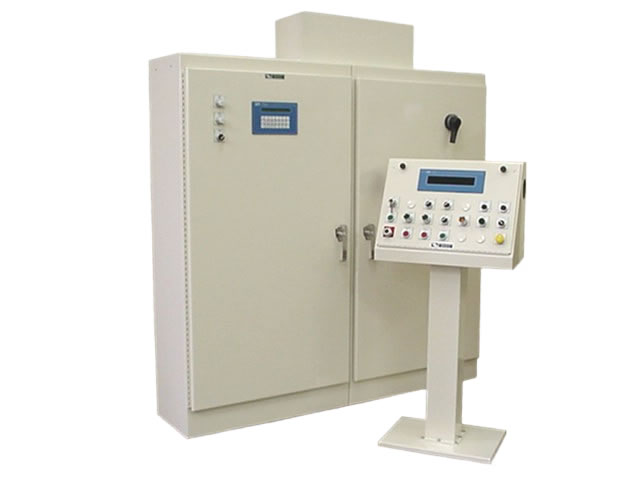

  • Supplied with 72" x 72" x 18" NEMA 12 Power/Logic cabinet with separate Operator's Console.
  • 2-Line x 20 Character Alphanumeric status/alarm display supplied standard upgradeable to a Touch-Screen panel.
click to enlarge

click to enlarge

contact us for more information

SYS-WI2: Ragsdale (APM) Bodymaker Control System
click to enlarge
  • Complete control for all machine functions including: main drive, clutch solenoids, air strip solenoids, cupfeed solenoid, positive cupfeed stop solenoid, short can detection, die sensor fail detection, all alarm monitoring, line control interface, etc.
  • Based on HSL-WI5 technology.
  • Reduces tooling damage by accurately detecting short can/tear-offs and immediately de-activating the clutch and cupfeed to prevent feeding additional cups.
  • Provides repeatable air strip control to prevent air stripping and blow-out problems.
  • Accurately controls clutch with brake wear compensation algorithm to stop press at BDC regardless of brake response.
  • Can be supplied with servo cupfeed control (based on HSL-WISVCUP), mechanical positive cupfeed control, or standard brushfeed cupfeed control.
  • Supplied with two speed AC drive control standard or with optional Variable Frequency Drive for main drive.

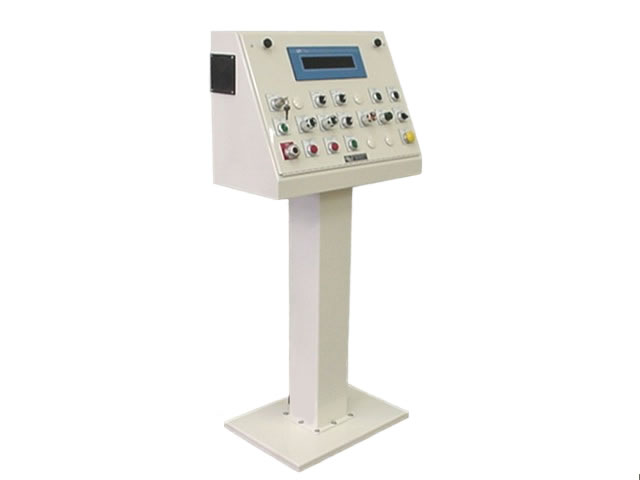

  • Supplied with 72" x 72" x 18" NEMA 12 Power/Logic cabinet with separate Operator's Console.
  • 2-Line x 20 Character Alphanumeric status/alarm display supplied standard upgradeable to a Touch-Screen panel.
click to enlarge
click to enlarge

contact us for more information
