Programmable Limit Switch (PLS) Section

The PLS section is a high speed programmable limit or cam switch which accepts angular position information in the form of resolver format signals and converts these to digital. The M4500 is configured for 8, 16, 32, or 64 timing channels. These are mapped to internal memory locations of the M4500 for use by the PLC section or can be written to output boards for use in general PLS applications.

The timing channels can be programmed "on" and "off" at user defined position set-points. Each timing channel can be programmed with up to 50 unique "on-off" set-points or with a pulse train of fixed "on" and "off" divisions throughout the entire channel.

The scale factor of the PLS is programmable from 2 to 4096 divisions per revolution while the offset is programmable from 0 to one minus the scale factor. The PLS supports up to 8 PLS programs when 8 timing channels are used and the scale factor is less than 512 (less PLS programs when more channels are used or the scale factor is greater than 512).

A typical application utilizing multiple PLS programs is a stamping press where different die sets are used to produce different stampings. The timing signals for each die set (up to 8 different die sets) is programmed and saved in a specific PLS program. As different die sets are used, the corresponding PLS program is called up. This relieves the operator from reprogramming the timing signals each time a die set is changed.

Speed Compensation is available for timing channels 0 through 7. This is used to compensate for the mechanical response time of a device activated by a particular timing channel. The speed compensation algorithm "leads" the desired activation position by a time in milliseconds entered for that channel. Thus, as the speed increases, the point at which the device is activated is advanced to compensate for the response time of the device. Note that the setup is simplified by entering the compensation parameter in units of time (milliseconds) which directly reflects mechanical response, not in degrees per RPM as done by other PLS manufacturers.

Since the PLS is fully integrated with the PLC processor, advanced PLS features which allow much more sophisticated machine related timing algorithms can be performed as well.

For more information, download the complete M4500 User's Manual.

M4500 Product Line:

General System Features
System Configurations

PLC Section
Interrupt Inputs
Built-in Analog I/O
Diagnostics/Fault Detection

PLS Section
Resolver
PLS Channel Programming
Advanced PLS Features

Digital I/O Boards
Analog I/O Boards
Communications Boards
Motion Control Boards
Display/Keypad
Power Supply
SYSdev Program
Development Software

Data Sheets by part number and User's Manuals

For pricing and availability, contact us



RSV34-MS1 Resolver

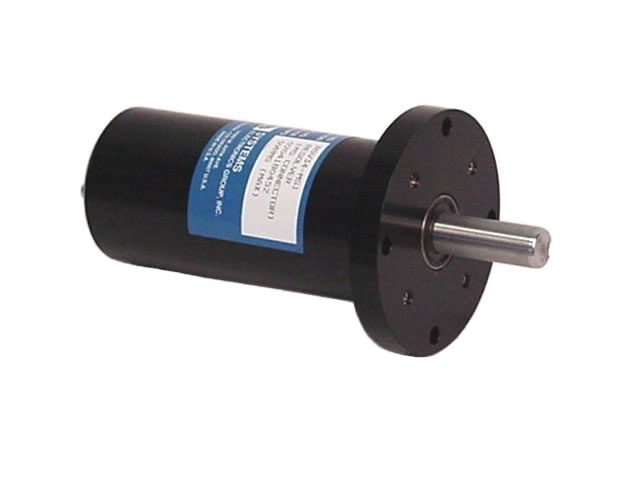

The RSV34-MS1 combines a brushless resolver, automotive rated double bearing shaft, flexible coupling, circular military spec connector, and a NEMA 4X housing to provide a very rugged and reliable position transducer. This is mounted on the machine and interfaces directly to the PLS section of the M4500 via a 6-conductor cable. From this, angular machine position can be determined and timing signals in the PLS section generated to control position dependent functions.
